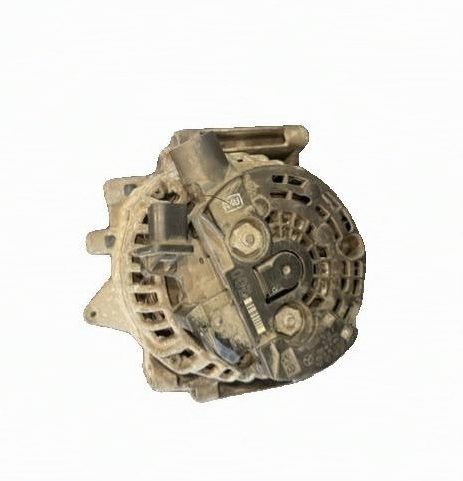

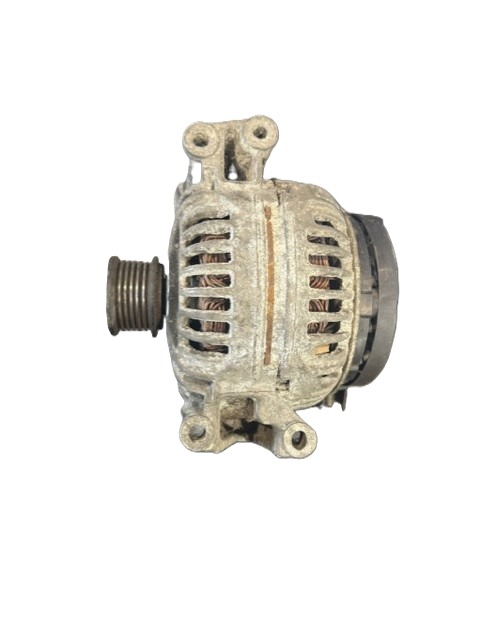

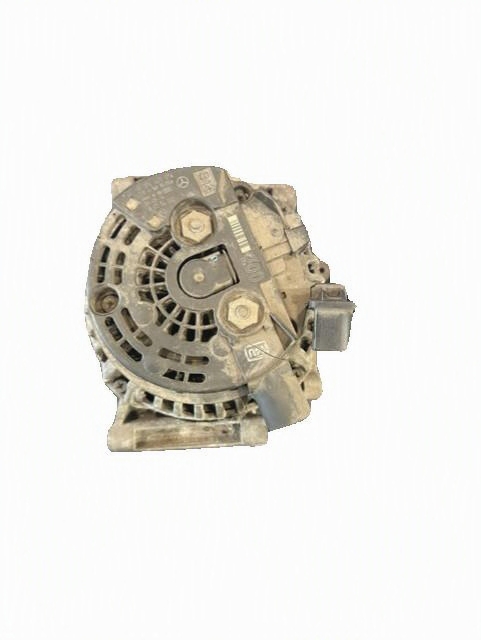

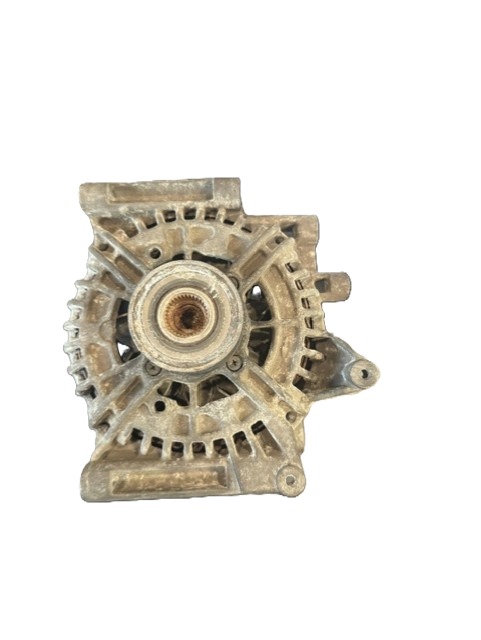

A1-11216

SKU: A1-11216 Categories: ,

<table class="xena-imported-specs">
<tbody>
<tr>
<th style="text-align: left;">TYPE</th>
<td>Alternator</td>
</tr>
<tr>
<th style="text-align: left;">AMPERAGE</th>
<td>200</td>
</tr>
<tr>
<th style="text-align: left;">DESIGN</th>
<td>IR/IF</td>
</tr>
<tr>
<th style="text-align: left;">MFR</th>
<td>BOSCH</td>
</tr>
<tr>
<th style="text-align: left;">PLUG CLOCK</th>
<td>4</td>
</tr>
<tr>
<th style="text-align: left;">PLUG CODE</th>
<td>063</td>
</tr>
<tr>
<th style="text-align: left;">PLUG ORIENTATION</th>
<td>Side</td>
</tr>
<tr>
<th style="text-align: left;">PULLEY DESIGN</th>
<td>SC6</td>
</tr>
<tr>
<th style="text-align: left;">PULLEY GROOVE OD</th>
<td>51</td>
</tr>
<tr>
<th style="text-align: left;">ROTATION</th>
<td>CW</td>
</tr>
<tr>
<th style="text-align: left;">VOLTAGE</th>
<td>12</td>
</tr>
</tbody>
</table>

<hr class="xena-existing-arrowhead-divider" />

<div class="xena-existing-arrowhead-info">TYPE: Alternator
MFR: BOSCH
DESIGN: IR/IF
VOLTAGE: 12
AMPERAGE: 200
APPLICATIONS:
2006 Mercedes Benz E Class w/3.2L Diesel</div>

Applications

Applications (1)
MakeModelYearEngine
Mercedes-BenzE3202005 - 2006L6 3.2L

Bill of Materials

Part#NotesPriceStockAdd
Adapter, Tester9800-9010
Bearing, Ball5-3507
Bearing, Ball5-5224Not for sale
Brush Set7320-1105
Brush Set7320-1105B
Clutch Pulley7920-2128
Cover, Pulley8440-4115
Cover or Shield8420-167
Frame, DE, Alt7620-2026
Plug Code9801-078
PulleyF 00M 349 8270 124 625 014Not for sale
Rectifier7720-1551
RegulatorF-00M-144-1080 124 625 014Not for sale
Regulator & Brush Holder8020-1245
Slip Ring, Rotor7120-202Not for sale
Stator7220-9454
Tilt & Trim MotorA1-1082110821Not for sale
Tolerance Ring9220-2019
