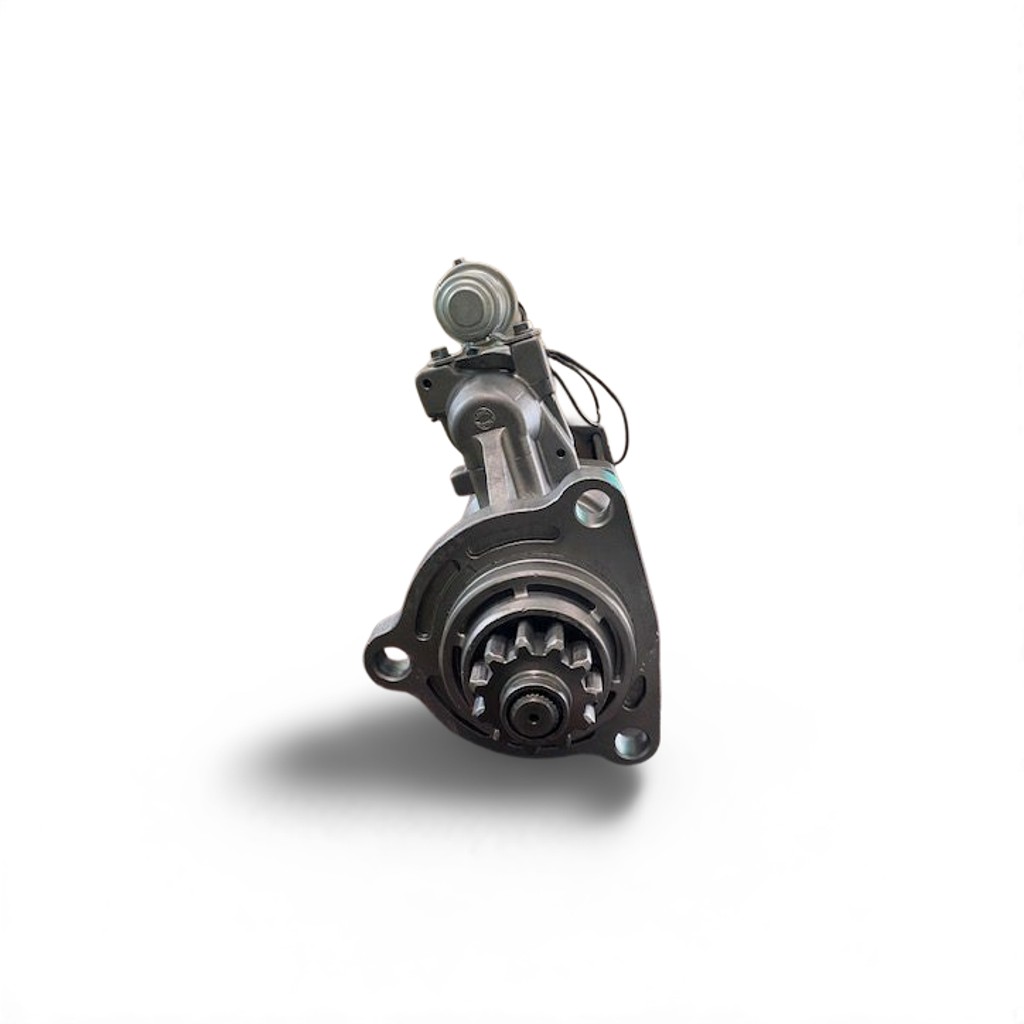

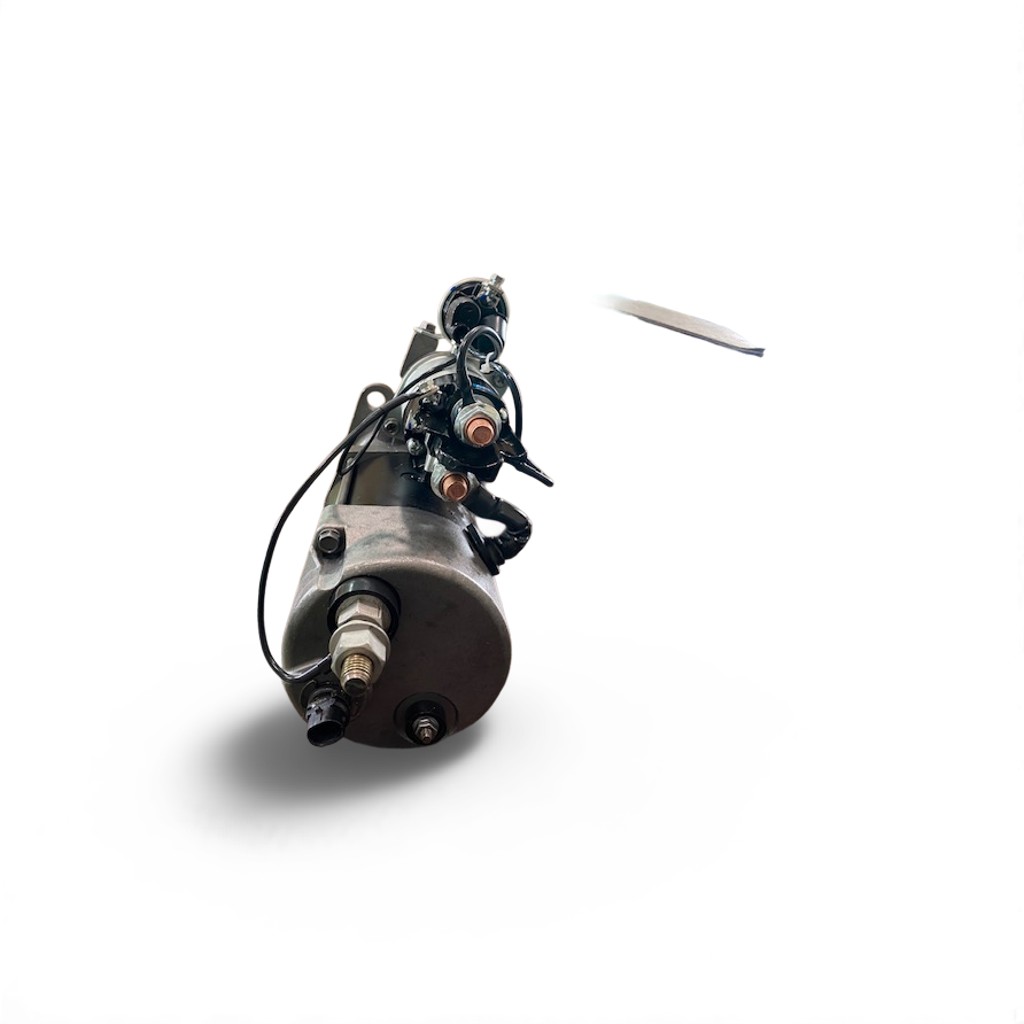

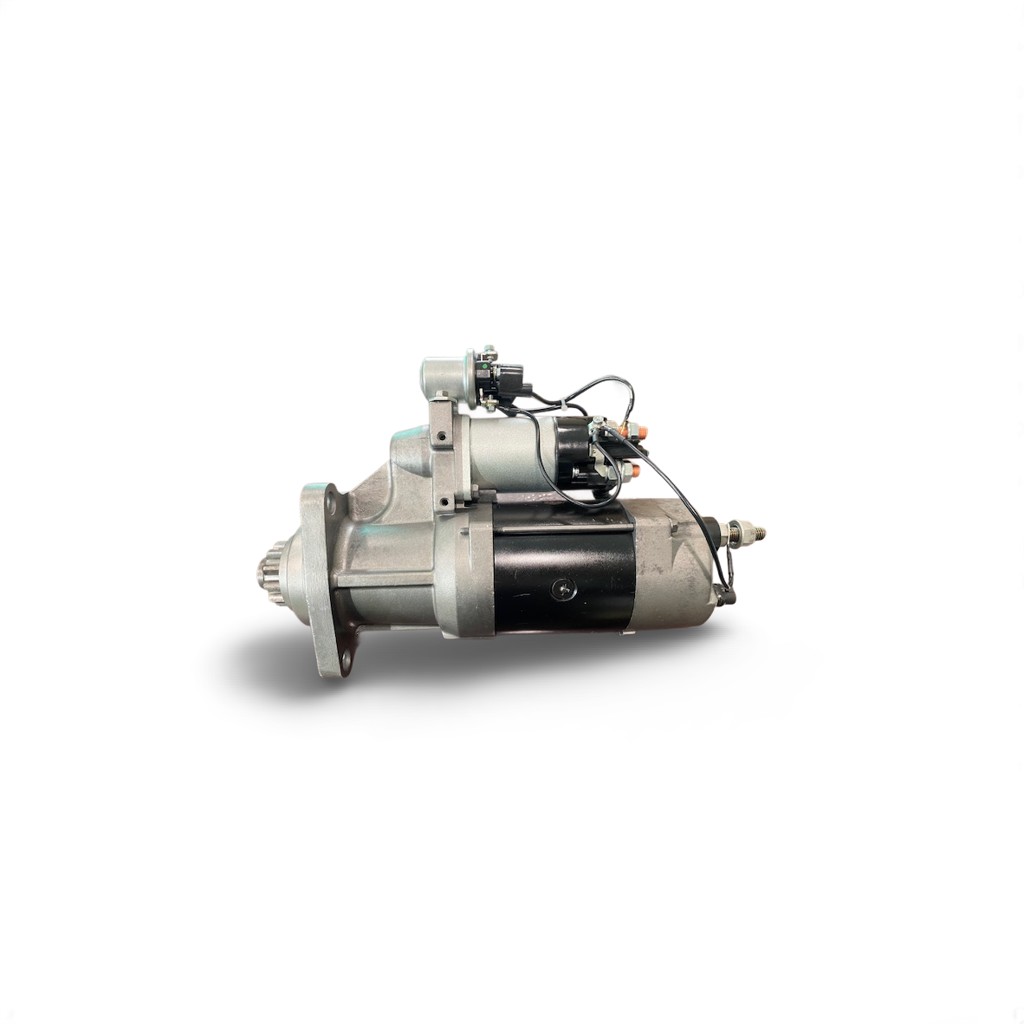

ALTERNATOR STARTERS
| Manufacture | Delco |
| Case Grounding | Insulated |
| Design | PLGR |
| Family | 39MT |
| Ims | Yes |
| Mounting Bolt Hole Quantity | 3 |
| Mounting Hardware Included | No |
| Mounting Shims Included | No |
| Mounting Type | SAE 3 |
| Nose Cone Type | Open Nose |
| Over-crank Protection | Yes |
| Power Rating | 6.4 |
| Re-clockable Flange | Yes |
| Solenoid Attached | Yes |
| Starter Drive Housing Position | 82 |
| Starter Rotation | Clockwise (Right) |
| Tooth Quantity | 11 |
| Voltage | 12 |
| Make | Model | Year |
|---|---|---|
| Kenworth | C500 6 11.1L | 2005 - 2007 |
| Kenworth | C500 6 12.0L | 1997 - 1998 |
| Kenworth | C500 6 12.5L | 2005 - 2010 |
| Kenworth | C500 L6 10.8L | 2001 - 2002 |
| Kenworth | C500 L6 14.9L | 1999 - 2007 |
| Kenworth | T2000 6 12.0L | 1997 - 1999 |
| Kenworth | T2000 6 12.5L | 2005 - 2007 |
| Kenworth | T2000 L6 10.3L | 1998 - 1999 |
| Kenworth | T2000 L6 14.9L | 1999 - 2007 |
| Kenworth | T600A 6 11.1L | 2005 - 2007 |
| Kenworth | T600A 6 12.0L | 1997 - 1999 |
| Kenworth | T600A 6 12.5L | 2005 - 2007 |
| Kenworth | T600A L6 10.3L | 1997 - 1999 |
| Kenworth | T600A L6 10.8L | 1999 - 2007 |
| Kenworth | T600A L6 14.9L | 2000 - 2007 |
| Kenworth | T800 6 11.1L | 2005 - 2007 |
| Kenworth | T800 6 12.0L | 1997 - 1999 |
| Kenworth | T800 6 12.5L | 2005 - 2007 |
| Kenworth | T800 L6 10.3L | 1997 - 2002 |
| Kenworth | T800 L6 14.6L | 2000 - 2003 |
| Kenworth | T800 L6 14.9L | 2000 - 2007 |
| Kenworth | T800 L6 15.8L | 2000 - 2003 |
| Kenworth | W900 6 12.0L | 1997 - 1999 |
| Kenworth | W900 6 12.5L | 2005 - 2009 |
| Kenworth | W900 L6 10.3L | 1997 - 1999 |
| Kenworth | W900 L6 14.6L | 2000 - 2003 |
| Kenworth | W900 L6 14.9L | 1999 - 2014 |
| Kenworth | W900 L6 15.8L | 2000 - 2003 |
| Peterbilt | 320 6 12.5L | 2008 - 2009 |
| Peterbilt | 320 L6 10.3L | 2000 - 2004 |
| Peterbilt | 320 L6 10.8L | 2003 - 2011 |
| Peterbilt | 357 6 11.1L | 2005 - 2007 |
| Peterbilt | 357 6 12.0L | 1997 - 2004 |
| Peterbilt | 357 6 12.5L | 2003 - 2008 |
| Peterbilt | 357 L6 10.3L | 1997 - 2004 |
| Peterbilt | 357 L6 10.8L | 2003 - 2007 |
| Peterbilt | 357 L6 14.9L | 2001 - 2007 |
| Peterbilt | 362 6 12.0L | 1997 - 2004 |
| Peterbilt | 362 6 12.5L | 2003 - 2006 |
| Peterbilt | 362 L6 10.3L | 1997 - 2001 |
| Peterbilt | 365 | 2008 - 2009 |
| Peterbilt | 365 6 12.5L | 2008 - 2010 |
| Peterbilt | 365 L6 10.8L | 2008 - 2010 |
| Peterbilt | 367 L6 10.8L | 2008 - 2010 |
| Peterbilt | 367 L6 14.9L | 2008 - 2010 |
| Peterbilt | 377 6 12.0L | 1997 - 2000 |
| Peterbilt | 377 L6 10.3L | 1997 - 2001 |
| Peterbilt | 378 6 11.1L | 2004 - 2007 |
| Peterbilt | 378 6 12.0L | 1997 - 2004 |
| Peterbilt | 378 6 12.5L | 2003 - 2007 |
| Peterbilt | 378 L6 10.3L | 1997 - 2003 |
| Peterbilt | 378 L6 10.8L | 2003 - 2007 |
| Peterbilt | 378 L6 14.9L | 1999 - 2007 |
| Peterbilt | 379 6 12.0L | 1997 - 2004 |
| Peterbilt | 379 6 12.5L | 2003 - 2007 |
| Peterbilt | 379 L6 10.3L | 1997 - 2003 |
| Peterbilt | 379 L6 10.8L | 2003 - 2007 |
| Peterbilt | 379 L6 14.6L | 2000 - 2003 |
| Peterbilt | 379 L6 14.9L | 1999 - 2007 |
| Peterbilt | 379 L6 15.8L | 2000 - 2003 |
| Peterbilt | 384 | 2008 - 2009 |
| Peterbilt | 384 6 12.5L | 2008 - 2011 |
| Peterbilt | 384 L6 10.8L | 2008 - 2012 |
| Peterbilt | 385 6 11.1L | 2005 - 2007 |
| Peterbilt | 385 6 12.0L | 1997 - 2004 |
| Peterbilt | 385 6 12.5L | 2003 - 2007 |
| Peterbilt | 385 L6 10.3L | 1997 - 2003 |
| Peterbilt | 385 L6 10.8L | 2003 - 2007 |
| Peterbilt | 386 6 12.5L | 2006 - 2011 |
| Peterbilt | 386 L6 10.8L | 2008 - 2011 |
| Peterbilt | 386 L6 14.9L | 2007 - 2010 |
| Peterbilt | 387 6 12.0L | 2000 - 2004 |
| Peterbilt | 387 6 12.5L | 2003 - 2011 |
| Peterbilt | 387 L6 10.8L | 2003 |
| Peterbilt | 387 L6 14.6L | 2000 - 2004 |
| Peterbilt | 387 L6 14.6L | 2004 - 2009 |
| Peterbilt | 387 L6 14.9L | 2000 - 2011 |
| Peterbilt | 388 6 12.5L | 2008 - 2010 |
| Peterbilt | 388 L6 14.9L | 2008 - 2010 |
| Peterbilt | 389 L6 14.9L | 2008 - 2010 |
