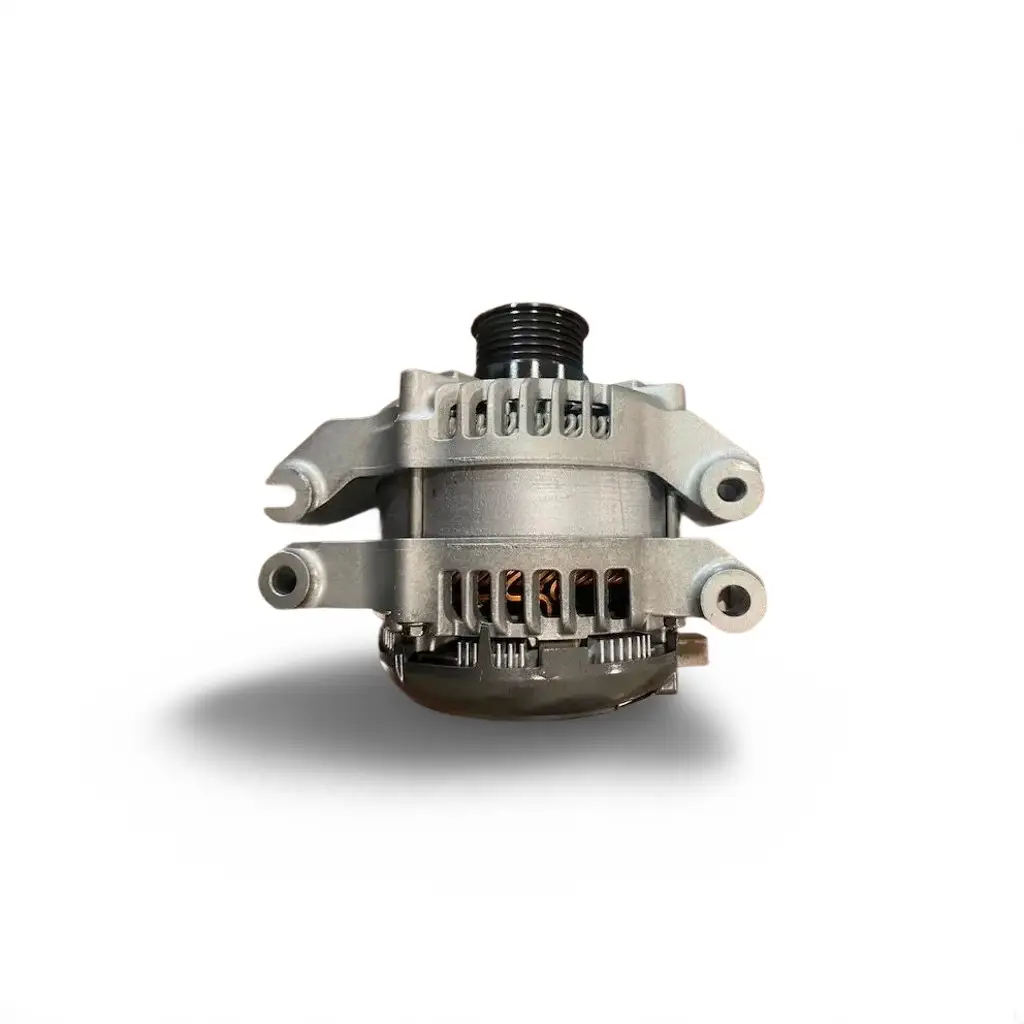

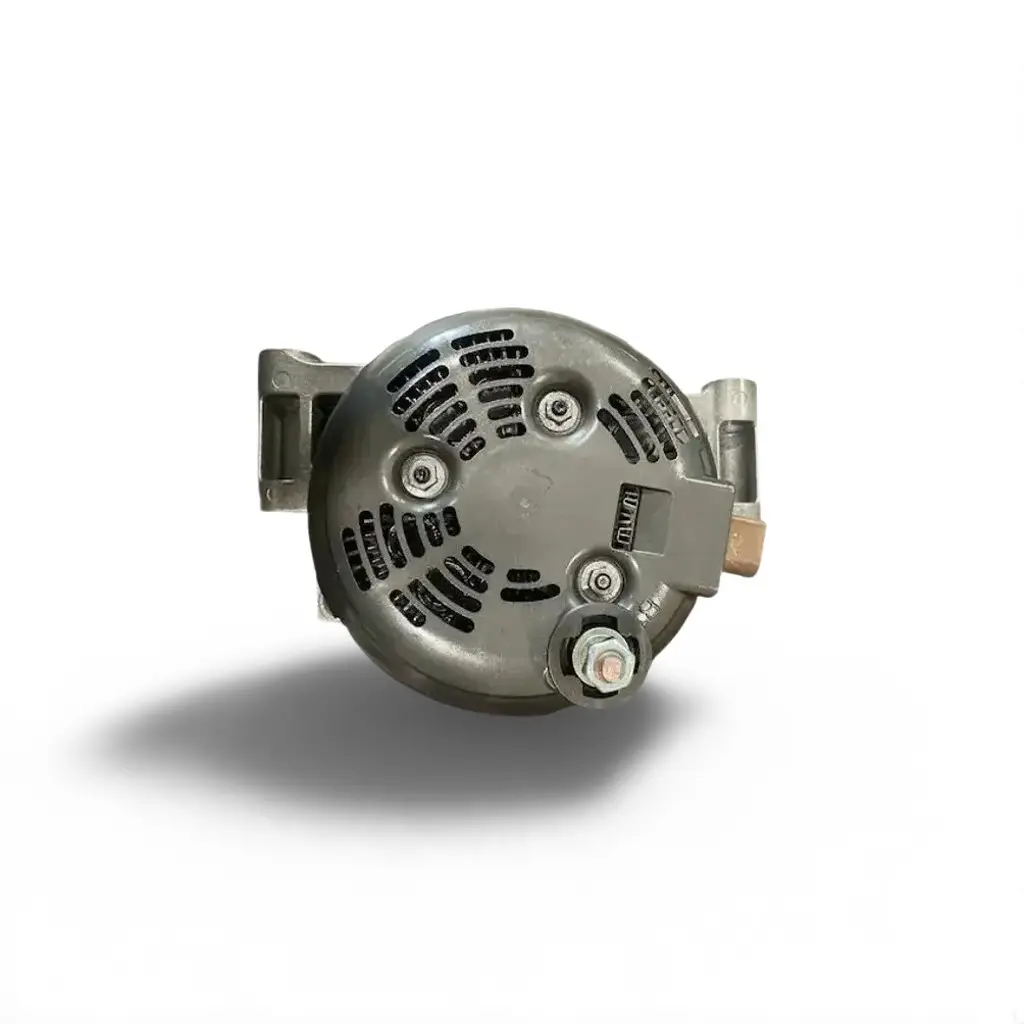

A1-11781

Category:

Specifications

Manufacture DENSO
Amperage Rating 230
Decoupled Or Clutch Pulley Yes
Fan Type Internal
Outside Pulley Diameter 53.7
Plug Clock Rear View Main Mounting Ear At 6 O Clock 12
Plug Orientation Side
Pulley Belt Type Serpentine
Pulley Groove Quantity 6
Regulator Type Internal
Rotation Direction Clockwise (Right)
Stator Type Hairpin
Voltage 12
Fits OEM #:AL6547X (Reman), 0-986-CR6-317, 0-986-UR6-317, 56029696AA, 56029696AB, 104211-012, 104211-0120, A11781... (12 total)
AL6547X (Reman)0-986-CR6-3170-986-UR6-31756029696AA56029696AB104211-012104211-0120A11781400-52737R11781290-6400V2-11781
Make Model Year
Ram 1500 2014 - 2018
Ram 1500 Classic 2019

Bill of Materials

Part#NotesPriceStockAdd
Ball Bearing #2X9-A872111781Not for sale
